Axial (Propeller) Fans - N Series

Axial Fans N Series
Axial Fans N Series
Axial Fans N Series
Airdex Assembled Axial Fans SF series

N Series – Assembled medium duty axial fans

  • Airdex N Series axial fans are ideal for medium duty residential air condenser applications
  • Fan diameters range from 10" to 30"
  • Blade material - aluminum
  • Spider and Hub material - zinc coated steel
  • Blade pitch range from 10° to 40°
  • Fans are available in 2,3 and 4 bladed configurations
  • Fans are available with press peened, welded or bolted universal hubs available on intake (HOB) or discharge (HOF) side

Download Brochure

Specs

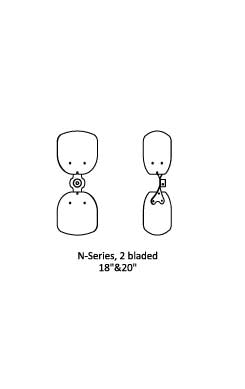

N-series, 2 bladed

SKU Weight (lbs) Diameter Standard bores
N-18XX-2
2.01 18.00 1/2 , 5/8
N-20XX-2
2.27 20.00 1/2 , 5/8
N-22XX-2
3.38 22.00 1/2 , 5/8

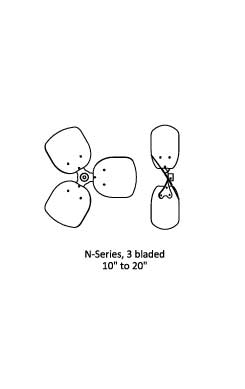

N-series, 3 bladed

SKU Weight (lbs) Diameter Standard bores
N-10XX-3
0.31 10.00 1/4 , 5/16 , 3/8 , 1/2
N-12XX-3
0.59 12.00 1/4 , 5/16 , 3/8 , 1/2
N-14XX-3
1.03 14.00 1/4 , 5/16 , 3/8 , 1/2
N-16XX-3
1.20 16.00 1/4 , 5/16 , 3/8 , 1/2
N-18XX-3
1.69 18.00 1/2 , 5/8
N-20XX-3
2.34 20.00 1/2 , 5/8
N-22XX-3
2.64 22.00 1/2 , 5/8
N-24XX-3
2.82 24.00 1/2 , 5/8
N-26XX-3
3.50 26.00 1/2 , 5/8

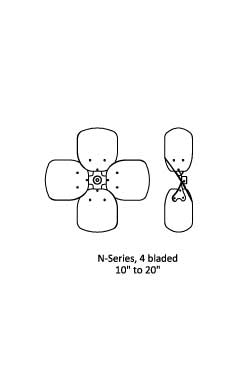

N-series, 4 bladed

SKU Weight (lbs) Diameter Standard bores
N-10XX-4
0.39 10.00 1/4 , 5/16 , 3/8 , 1/2
N-12XX-4
0.71 12.00 1/4 , 5/16 , 3/8 , 1/2
N-14XX-4
1.31 14.00 1/4 , 5/16 , 3/8 , 1/2
N-16XX-4
1.51 16.00 1/4 , 5/16 , 3/8 , 1/2
N-18XX-4
2.11 18.00 1/2 , 5/8
N-20XX-4
2.92 20.00 1/2 , 5/8
N-22XX-4
3.30 22.00 1/2 , 5/8
N-24XX-4
3.52 24.00 1/2 , 5/8
N-26XX-4
4.37 26.00 1/2 , 5/8

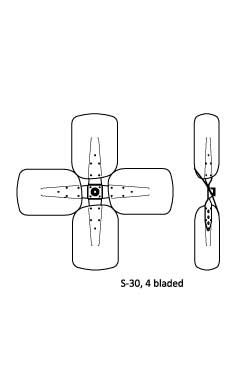

S-series, 4 bladed

SKU Weight (lbs) Diameter Standard bores
S-30XX-4
5.45 30.00 5/8
