OP Series – Light duty axial fans
- Airdex OP Series axial fans are ideal for light duty small diameter commercial refrigeration applications
- Fan diameters range from 5" to 12"
- Blade material - aluminum
- Hub material - zinc coated steel
- Blade pitch range from 10° to 40°
- Fan blades available in hubbed, hubless and unit bearing configurations
- Hub available on intake (HOB) or discharge (HOF) side
Specs
O-series, 4 bladed
| Model # | Weight (lbs) | Diameter | Standard bores | |
|---|---|---|---|---|
|
0.06 | 5.00 | .182, .188, .218, .250, .313 | |
|
0.09 | 6.00 | .182, .188, .218, .250, .313 |

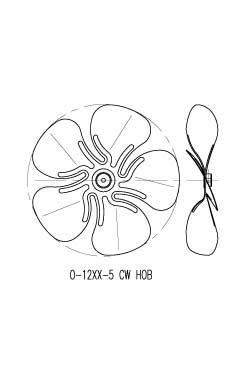

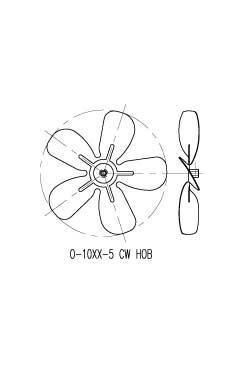

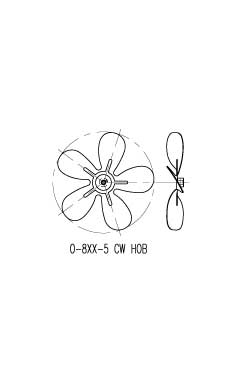

O-series, 5 bladed
| Model # | Weight (lbs) | Diameter | Standard bores | |
|---|---|---|---|---|
|
0.10 | 6.00 | unit bearing | |
|
0.0 | 6.00 | .182, .188, .218, .250, .313 | |
|
0.12 | 7.00 | unit bearing | |
|
0.0 | 7.00 | n/a | |
|
0.0 | 7.75 | n/a | |
|
0.14 | 7.75 | unit bearing | |
|
0.15 | 8.00 | unit bearing | |
|
0.17 | 8.00 | .250, .313, .375 | |
|
0.0 | 8.00 | .250, .313, .375 | |
|
0.0 | 8.75 | unit bearing | |
|
0.22 | 9.00 | .250, .313, .375 | |
|
0.20 | 9.00 | unit bearing | |
|
0.21 | 10.00 | unit bearing | |
|
0.25 | 10.00 | .250, .313, .375 | |
|
0.47 | 12.00 | .250, .313, .375 |
