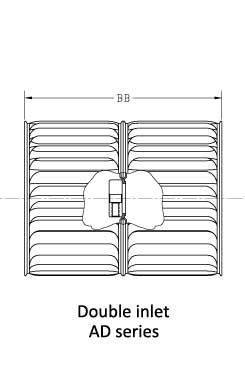

AD Series – Double Inlet Double Width
- Centrifugal strip wheel materials:
- galvanized steel or
- aluminum
- Wheels available in CW and CCW rotation
- Rotation determined by viewing wheel from the hub side
- Wheel dimensions held to close tolerances
- Wheels are dynamically balanced according to industry standards
- Multiple hub bore sizes available.
Specs
Series AD

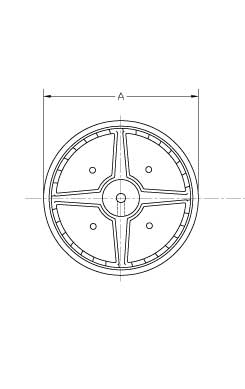

| Model # | A | BB | Standard bores | |
|---|---|---|---|---|
|
5.25 | 4.06 | 5/16, 3/8, 1/2 | |
|
5.25 | 4.94 | 5/16, 3/8, 1/2 | |
|
5.25 | 5.82 | 5/16, 3/8, 1/2 | |
|
5.25 | 6.88 | 5/16, 3/8, 1/2 | |
|
5.25 | 8.06 | 5/16, 3/8, 1/2 | |
|
5.75 | 4.06 | 5/16, 3/8, 1/2 | |
|
5.75 | 4.94 | 5/16, 3/8, 1/2 | |
|
5.75 | 5.82 | 5/16, 3/8, 1/2 | |
|
5.75 | 6.94 | 5/16, 3/8, 1/2 | |
|
5.75 | 8.06 | 5/16, 3/8, 1/2 | |
|
5.75 | 8.56 | 5/16, 3/8, 1/2 | |
|
6.28 | 4.12 | 5/16, 3/8, 1/2, 5/8 | |
|
6.28 | 4.98 | 5/16, 3/8, 1/2, 5/8 | |
|
6.28 | 5.84 | 5/16, 3/8, 1/2, 5/8 | |
|
6.28 | 6.92 | 5/16, 3/8, 1/2, 5/8 | |
|
6.28 | 7.60 | 5/16, 3/8, 1/2, 5/8 | |
|
6.28 | 8.06 | 5/16, 3/8, 1/2, 5/8 | |
|
6.28 | 8.56 | 5/16, 3/8, 1/2, 5/8 |
